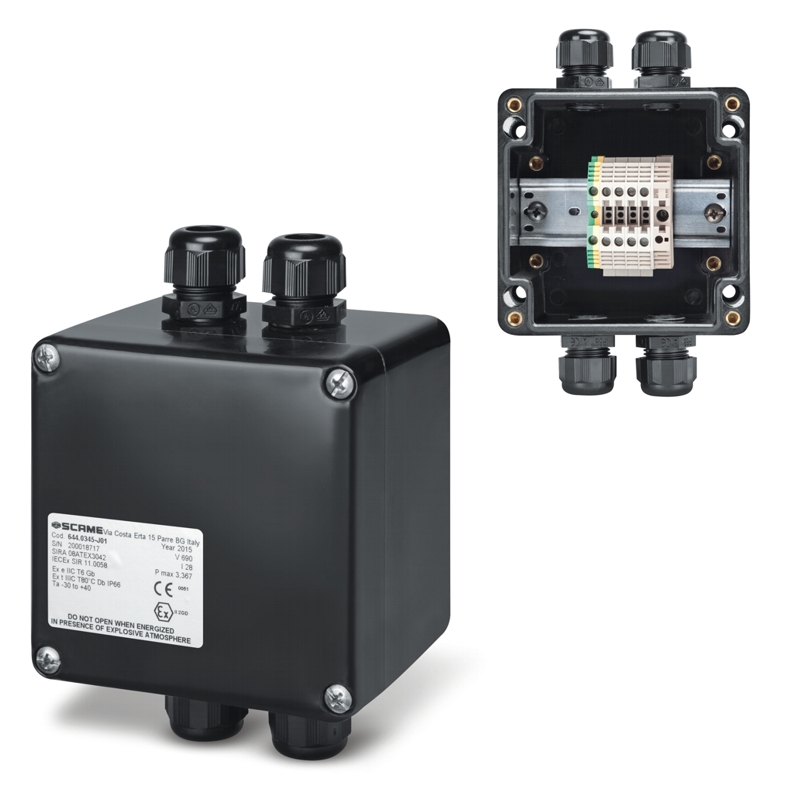

ZENITH-P SERIES
Junction boxes in termosetting material
for applications in zone 1/2 (gas) and zone 21/22 (dust)
TECHDATA
Commercial series：ZENITH-P Series
Synthetical description：SURFACE MOUNTING BOX
Protection degree：Splash proof
Protection degree IP：IP66
Material：THERMOSETTING
Equipment：Junction box
Terminal block：14x2,5mm2 Cage Terminal
Dimensions：160x75x75mm
Cable entry：6xM20 Plugged
PLUGGED Rated current (value)：12A
Rated Sizing Voltage (Value)：690V
Maximum power dissipation：4,780W
Group and categories EX：II 2GD
Modo protezione gas：Ex eb IIC T6 Gb
Dust protection：Ex tb IIIC T80°C Db IP66
Ambient temperature Ta min：-30 °C
Ambient temperature Ta max：+40 °C
STANDARDS AND LAWS
EN 60079-31 (2014)[European Standard] Explosive atmospheres. Equipment dust ignition protection by enclosure "t"
IEC 60079-31 (2013)[International Standard] Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"
EN 60079-7 (2015)[European Standard] Explosive atmospheres. Equipment protection by increased safety "e"
IEC 60079-7 (2015)[International Standard] Explosive atmospheres - Part 7: Equipment protection by increased safety "e".
IEC 60079-0 (2017)[International Standard] Explosive atmospheres - Part 0: Equipment - General requirements
EN 60079-0 (2018)[European Standard] Explosive atmospheres. General requirements.
DIRECTIVE ATEX 2014/34/UE[European Directives] Atmosphere Explosive
MASTER DATA
CERTIFICATIONS
UKCA marking；UK Conformity Assessed
UE；Declaration of conformity
EAC；Eurasian Conformity
Notifica ATEX；Product quality assurance notification
IMQ (IECex)；Istituto Italiano del Marchio di Qualità
IMQ ATEX；Istituto Italiano del Marchio di Qualità - Divisione ATEX
；UKCA marking [ELEMENT UKCA ATEX]；UK Conformity Assessed
Notifica ATEX；Product quality assurance notification
THERMOSETTING SURFACE MOUNTING BOX
COD.644.0210-J10，75x110x75mm IP66
COD.644.0220-J14，160x75x75mm IP66
COD.644.0240-J20，230x75x75mm IP66
COD.644.0345-J01，122x120x90mm IP66
COD.644.0345-J02，122x120x90mm IP66
COD.644.0345-J03，122x120x90mm IP66
COD.644.0345-J04，122x120x90mm IP66
MOUNTING BRACKETS KIT
COD.644.C075，75mm ，ZINC-Coated steel
COD.644.C120，120mm，ZINC-Coated steel
COD.644.C160，160mm，ZINC-Coated steel
WALL MOUNTING BRACKETS KIT
COD.644.D075，75mm ，ZINC-Coated steel
COD.644.D120，120mm，ZINC-Coated steel
COD.644.D160，160mm ，ZINC-Coated steel
COD.644.D250，250mm ，ZINC-Coated steel
COD.644.D405，405mm ，ZINC-Coated steel
KIT FOR PADLOCKING
COD.644.G001，75x55mm，ZINC-Coated steel
COD.644.G002，75x75mm，ZINC-Coated steel
COD.644.G003，120x90mm，ZINC-Coated steel
COD.644.G004，160x90mm，ZINC-Coated steel
COD.644.G005，250x120mm，ZINC-Coated steel
COD.644.G006，405x165mm，ZINC-Coated steel
ZENITH-P系列接線盒的設計可確保即使在極端的大氣和溫度條件下，也具有出色的機械抗沖擊性和耐化學劑性，這得益于SMC技術所使用的玻璃纖維增強聚酯（GRP），使其幾乎堅不可摧?？煽啃院托允筞ENITH-P接線盒成為適合石油天然氣、化工和制藥行業應用的產品。固定點位于盒子的輪廓內，但在密封件外。壁厚允許使用機床創建入口孔。箱體和連接法蘭的模塊化尺寸允許快速構建尺寸和形狀的定制組合外殼。ZENITH-P箱還可以配備排水閥和呼吸閥。
The junction boxes of the ZENITH-P series are designed to guarantee excellent mechanical resistance to impacts and to chemical agents, even under extreme atmospheric and temperature conditions, thanks to the glass-fiber reinforced polyester used (GRP), obtained by SMC technology which makes it virtually indestructible. Reliability and resistance make ZENITH-P junction boxes the most suitable products for applications in the oil & gas, chemical and pharmaceutical industries. The fixing points are inside the profile of the boxes, but outside the seal. The wall thickness allows the creation of entry holes using machine tools. The modular dimensions of the boxes and the coupling flanges allow a rapid construction of customized combined enclosures in a wide range of sizes and shapes. ZENITH-P boxes can also be supplied with drainage and breathing valves.
